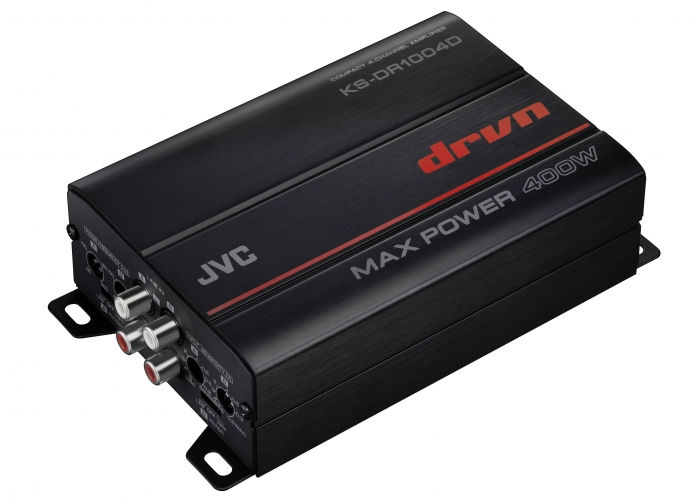

JVC 4x45W Class D Micro Amplifier

KS-DR1004D
Audio unit
Max Power Output
400W
Rated Power Output
Stereo (4 ohms)
45W x 4 (20Hz - 200Hz, less than or equal to 1.0% THD)
Stereo (2 ohms)
45W x 4 (1,000Hz, less than or equal to 1.0% THD)
Bridged (4 ohms)
90W x 2 (1,000Hz, less than or equal to 1.0% THD)
Speaker Impedance
4 ohm (2 ohm to 8 ohm allowable)
Frequency Response ( (+0, -1dB)
20Hz - 20kHz
Input Sensitivity (+0, -3dB)
0.2V-5.0V
Signal to Noise Ratio
> 98dB
Low Pass Filter Frequency (-12dB/oct.)
50Hz - 200Hz (variable)
High Pass Filter Frequency (-12dB/oct.)
50Hz - 200Hz (variable)
General
Conformal Coating
Yes
Dimensions (W x H x D)
145 x 45 x 99 mm (5-11/16" x 1-3/4" x 3-7/8")
Weight
0.7kg (1.5lbs)
